利用Html5 canvas 画出彩票走势图

admin · 发表于 2023-1-9 18:06:05

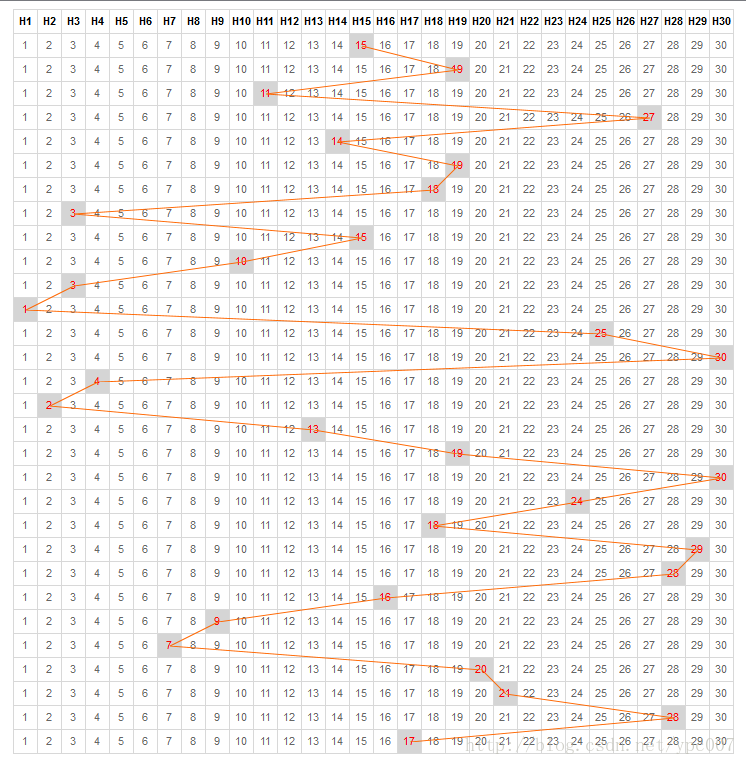

效果图

对应代码：

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title></title>
<script src="js/jquery-1.10.2.js"></script>
<style>
      table { border: 0; margin: 0; border-collapse: collapse; border-spacing: 0; font-size: 11px; font-family: Arial; margin: 0 auto; }
      table td, table th { padding: 0; border: 1px solid #d8d8d8; height: 23px; width: 23px; text-align: center; color: #666; }
      table th { font-weight: bold; color: #000; }
</style>
<script type="text/javascript">
      $(function () {
         CreateTable();
         var ids = "";
         for (var i = 1; i < 31; i++) {
            ids+= "T" + i + "_" + Math.floor(1 + Math.random() * (31 - 1)) + ",";
         }
         ids = ids.substring(0, ids.length - 1);
         CreateLine(ids, 20, "#ff6600", "canvasdiv", "#d5d5d5");
      });
      function CreateTable() {
         var tbody = "";
         var head = "<tr>";
         for (var i = 1; i < 31; i++) {
            head += "<th>H" + i + "</th>";
            tbody += "<tr>";
            for (var j = 1; j < 31; j++) {
                  tbody += "<td id='T" + i + "_" + j + "'>" + j + "</td>";
            }
            tbody += "</tr>";
         }
         head += "</tr>";
         $("#zstable thead").html(head);
         $("#zstable tbody").html(tbody);
      }

      function CreateLine(ids, w, c, div, bg) {
         var list = ids.split(",");
         for (var j = list.length - 1; j > 0; j--) {
            var tid = $("#" + list[j]);
            var fid = $("#" + list[j - 1]);
            var f_width = fid.outerWidth();
            var f_height = fid.outerHeight();
            var f_offset = fid.offset();
            var f_top = f_offset.top;
            var f_left = f_offset.left;
            var t_offset = tid.offset();
            var t_top = t_offset.top;
            var t_left = t_offset.left;
            var cvs_left = Math.min(f_left, t_left);
            var cvs_top = Math.min(f_top, t_top);
            tid.css("background", bg).css("color", "red");
            fid.css("background", bg).css("color", "red");
            var cvs = document.createElement("canvas");
            cvs.width = Math.abs(f_left - t_left) < w ? w : Math.abs(f_left - t_left);
            cvs.height = Math.abs(f_top - t_top);
            cvs.style.top = cvs_top + parseInt(f_height / 2) + "px";
            cvs.style.left = cvs_left + parseInt(f_width / 2) + "px";
            cvs.style.position = "absolute";
            var cxt = cvs.getContext("2d");
            cxt.save();
            cxt.strokeStyle = c;
            cxt.lineWidth = 1;
            cxt.lineJoin = "round";
            cxt.beginPath();
            cxt.moveTo(f_left - cvs_left, f_top - cvs_top);
            cxt.lineTo(t_left - cvs_left, t_top - cvs_top);
            cxt.closePath();
            cxt.stroke();
            cxt.restore();
            $("#" + div).append(cvs);
         }
      }

</script>
</head>
<body>
<form id="form1" runat="server">
      <table id="zstable">
         <thead></thead>
         <tbody></tbody>
      </table>
      <div id="canvasdiv">
      </div>
</form>
</body>
</html>
